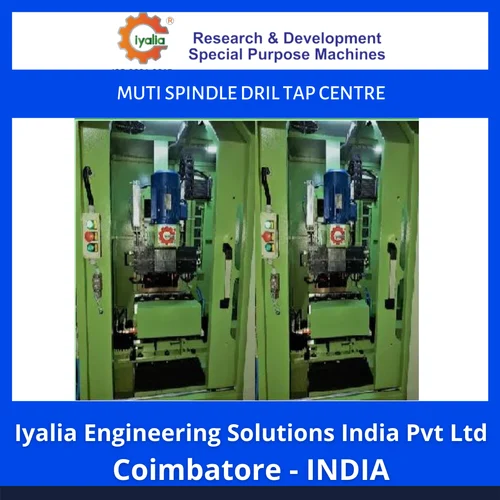

Drill Tap Center Multi Spindle| Iyalia Drill Tap Centre High Speed with Multi Spindle machine can do multiple components symultaniously with high production and less man power

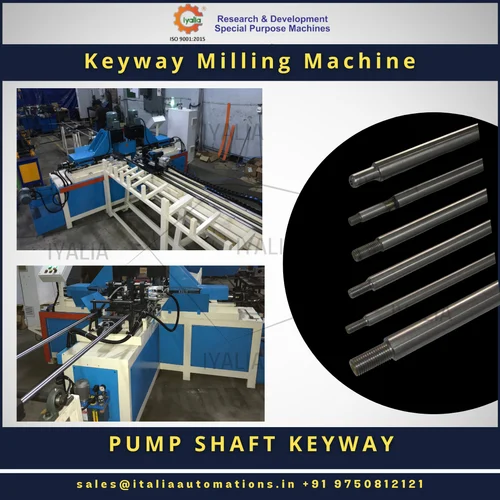

Submersible Pump Shaft Key way Milling Machine | Iyalia We, Iyalia, are located in Coimbatore, HUB of Submersible Pump Manufacturing. We accepted a "MAKING THEIR LIFE EASIER" challenge by designing a machine for Keyway Milling Submersible PUMP CENTRE Shafts where quality is 100% and ZERO Rejection. Centre Shaft has Two Keyways on 180Deg of shaft width from 3 mm and goes on as per the shaft Dia. The Shaft Dia and the length can vary from 300 to 3000mm. Production must be quick and consistent, without any significant human resources involved. Production output will be 700 to 1000 mm/minute. with the minimum workforce.

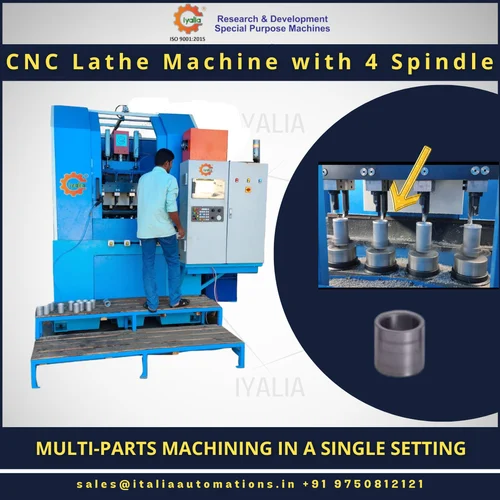

4 Spindle CNC Lathe Vertical| Iyalia 4 hydraulic chuck fixed in 4 spindle cnc lathe vertical lathe. 4 hydraulic chucks cnc controls fanuc hydraulic chuck dia 135mm cd between chucks 200 mm spindle rpm 1500 linear toolings vtl cnc are used to machine heavy products individually and are with single chuck with 1 set of linear tooling. iyalia customized vtl / lathe-cnc- machine haves 4 hydraulic chucks dia 135 and 4 sets of linear tooling’s with a capacity of dia 160 mm, where 4 parts will be machined at a time, which results 4 times production in one cycle. It can do turning, boring, facing and grooving and also threading. Iyalia vtl can perform all the linear tooling’s operations and you can give individual offset to each tool mechanically, which is the highlight of this machine. Products like flanges, sleeves, cups or first operation can be done with a high productivity. It can be used in forging and casting industries where many products are made in high volumes. The Iyalia Vertical CNC is not just a machine; it's a solution. It's designed for industries that require high-volume production, such as the fAluminium and Soft material turning with open tolerances. Products like flanges, sleeves, and cups can be produced with high efficiency. The machine's versatility makes it ideal for first operations, ensuring that products are made to exact specifications every time.
