Circular Saw Cutting Machine | Iyalia A Circular Saw Cutting Machine is used to cut steel bars, Alloy Bars into the desired lengths. The machine consists of a Circular Saw blade that rotates at Speeds and is powered by a gearbox connected to an electric motor. The steel bars are placed on a bed, clamping is done from vertical and Horizontal Direction, and the saw blade cuts through the steel as it is fed through the machine. Circular saw machines are commonly used in manufacturing industries for cutting steel bars, pipes, and other materials. They are used to cut steel bars to size for cutting steel bars for use in manufacturing machinery and equipment of any size. These machines can cut steel bars with precision and speed and handle a wide range of bar sizes and thicknesses. Some machines have an automatic feed system that allows for continuous cutting. In contrast, others may have a manual feed system that requires the operator to feed the steel bar into the saw. Some machines also have a saw blade height adjustment feature to accommodate different thicknesses of steel bars. It is important to note that while cutting steel bars with circular saw machines may be fast and efficient, it is also essential to follow safety procedures and use appropriate personal protective equipment to avoid injuries.

Duplex Circular Saw Cutting and Bar End Chamfering Machine | Iyalia We desighned a machine where the input of the bars will be kepth min of 10 tons. from t, each bar will move in every stroke and end cutting will happen with Circular Saw cutting individually each side. Dia 20 to 80 Round or Square Bar to a length of 8 meters will be input to be cut to length and end chamfering to be done 20 seconds / bar cutting and chamfering

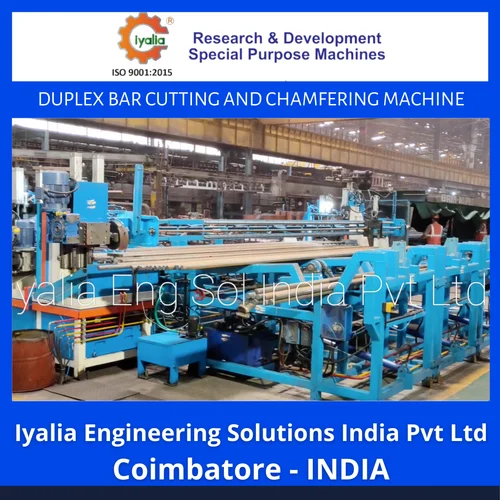

Duplex Bar Cutting And Chamfering Machine | iyalia 8 meters Bars will be loaded and is pushed into cutting and Chamfering system. Total length is checked with Servo system and excess material from the first side is cut from the Bar. Then the next operation is to do the Chamfering at the cut end. Same Cutting and Chamfering operations are performed at other side of the bar end. After cutting and Chamfering of the bars, the bars are collected in the soft cradle which is the final stage of the process. It will be bundled there and taken out of machine sent to dispatch area with the help of crane. This Cutting and Chamfering machine is used in Blooming Mill. After the straightening of the bars, these Cutting and Chamfering operations are done.
