Automatic Tapping Machine| This is High Speed Tapping machine with Cycle time of 3 sceonds for 10mm Thick Through tapping component. Automatic loading and unloading Hydraulic Clamping of component Head movement with servo controls this is high speed dedicated tapping machine for mass production.

Automatic Tapping Machine| This is High Speed Tapping machine with Cycle time of 3 sceonds for 10mm Thick Through tapping component. Automatic loading and unloading Hydraulic Clamping of component Head movement with servo controls this is high speed dedicated tapping machine for mass production.

Horizantal Drilling Tapping Machine | Iyalia We are a leading Manufacturer of high speed tapping machine, auto tapping machine, cnc nut tapping machine, flange nut tapping machine, high speed multi spindle tapping machine and high speed nut tapping machine from Coimbatore, India. This is High Speed Tapping machine with Cycle time of 3 sceonds for 10mm Thick Through tapping component. Automatic loading and unloading Hydraulic Clamping of component Head movement with servo controls This is high speed dedicated tapping machine for mass production

12 spindle Turret Drilling and Tapping capacity 30 mm Drilling and Tapping holder with collet system Hardened Spindles with bearings Spindle RPM adjustable for Drilling and Tapping. Servo slides Fabricated Slides for X, y and Z axis with Stroke100mm Servo system 3 nos. Slides movement with LM Guideways and ball screws. Component Clamping Chuck & dedicated drilling fixture with Chuck Pneumatic Clamping for both operations Pneumatic cylinders and valves SMC brand Servo based Rotary head powered with Servo motor

Our Hydraulic Press Automation System is a fully integrated solution designed for efficient, high-volume production. It features a 50 Ton four-pillar hydraulic press with robust cylinders, a heavy-duty base plate, and hydraulic system. The bulk loading feeder can hold approximately 50 to 100 kg of metal parts and is supported by a fabricated stand. A step feeder system with 2 to 3 hydraulic-driven feeders ensures smooth material flow, while the loading and unloading station enables quick setup changes (within 5–10 minutes), with components automatically unloaded via a chute and stacked linearly. The system includes a bowl feeder with drive and is designed for fully automated operation, moving components through a linear path with precision and consistency—ideal for improving productivity and reducing manual handling.

Industrial Automation High Speed Bar Feeder Machine We are offering Bar Feeder Machine. This is used in Press shop for feeding bars for initial cutting of the input components. The bar feeding has the capacity of 6mm to 35mm dia and upto 20 feet length. No need of operator in the machine

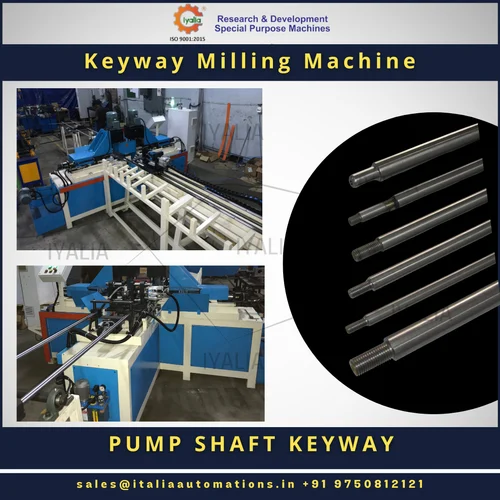

Submersible Pump Shaft Key way Milling Machine | Iyalia We, Iyalia, are located in Coimbatore, HUB of Submersible Pump Manufacturing. We accepted a "MAKING THEIR LIFE EASIER" challenge by designing a machine for Keyway Milling Submersible PUMP CENTRE Shafts where quality is 100% and ZERO Rejection. Centre Shaft has Two Keyways on 180Deg of shaft width from 3 mm and goes on as per the shaft Dia. The Shaft Dia and the length can vary from 300 to 3000mm. Production must be quick and consistent, without any significant human resources involved. Production output will be 700 to 1000 mm/minute. with the minimum workforce.

4 Spindle CNC Lathe Vertical| Iyalia 4 hydraulic chuck fixed in 4 spindle cnc lathe vertical lathe. 4 hydraulic chucks cnc controls fanuc hydraulic chuck dia 135mm cd between chucks 200 mm spindle rpm 1500 linear toolings vtl cnc are used to machine heavy products individually and are with single chuck with 1 set of linear tooling. iyalia customized vtl / lathe-cnc- machine haves 4 hydraulic chucks dia 135 and 4 sets of linear tooling’s with a capacity of dia 160 mm, where 4 parts will be machined at a time, which results 4 times production in one cycle. It can do turning, boring, facing and grooving and also threading. Iyalia vtl can perform all the linear tooling’s operations and you can give individual offset to each tool mechanically, which is the highlight of this machine. Products like flanges, sleeves, cups or first operation can be done with a high productivity. It can be used in forging and casting industries where many products are made in high volumes. The Iyalia Vertical CNC is not just a machine; it's a solution. It's designed for industries that require high-volume production, such as the fAluminium and Soft material turning with open tolerances. Products like flanges, sleeves, and cups can be produced with high efficiency. The machine's versatility makes it ideal for first operations, ensuring that products are made to exact specifications every time.

Rotary Table Multi Spindle Tapping Machine | Iyalia Rotary Transfer Drilling and Tapping machine for all small components The heat Sink Drilling and Tapping machine are designed and manufactured for high volume production of Heat Sinks and similar components. Many types of Aluminium Heat sink are widely used in industries, which usually requires Drilling and Tapping for fixing. This Heat Sink Drilling and Tapping machine doses four components at a time. It has four stations, and each station is in continuous operation; 1st station is loading parts manually, 2nd station, Drilling in the heat sink, 3rd the station, Tapping—the 4th station, component ejection and Cleaning the fixture for the next component clamping. Please get in touch with us for such a Drilling and Tapping machine or for some other similar machine requirements; thanks for watching the video, and share it if you think it
