Facing Chamfering machine | Working Process | Advantages of Pipe Chamfering | Tube Double Head Automatic Chamfering Machine | Servo Controls
Many Tubes are being Joint together for further operation, so the Facing of the Tube and Chamfering operation are most important factor to decide the accuracy and in case of the tube is used in any liquid transfer, then the facing and Chamfering has to be very precise with in the tolerance. Tube facing is required with the Precise Facing to required length with Flat face and given Angle of the Outer Diameter and Inner Diameter to support the jointing process.

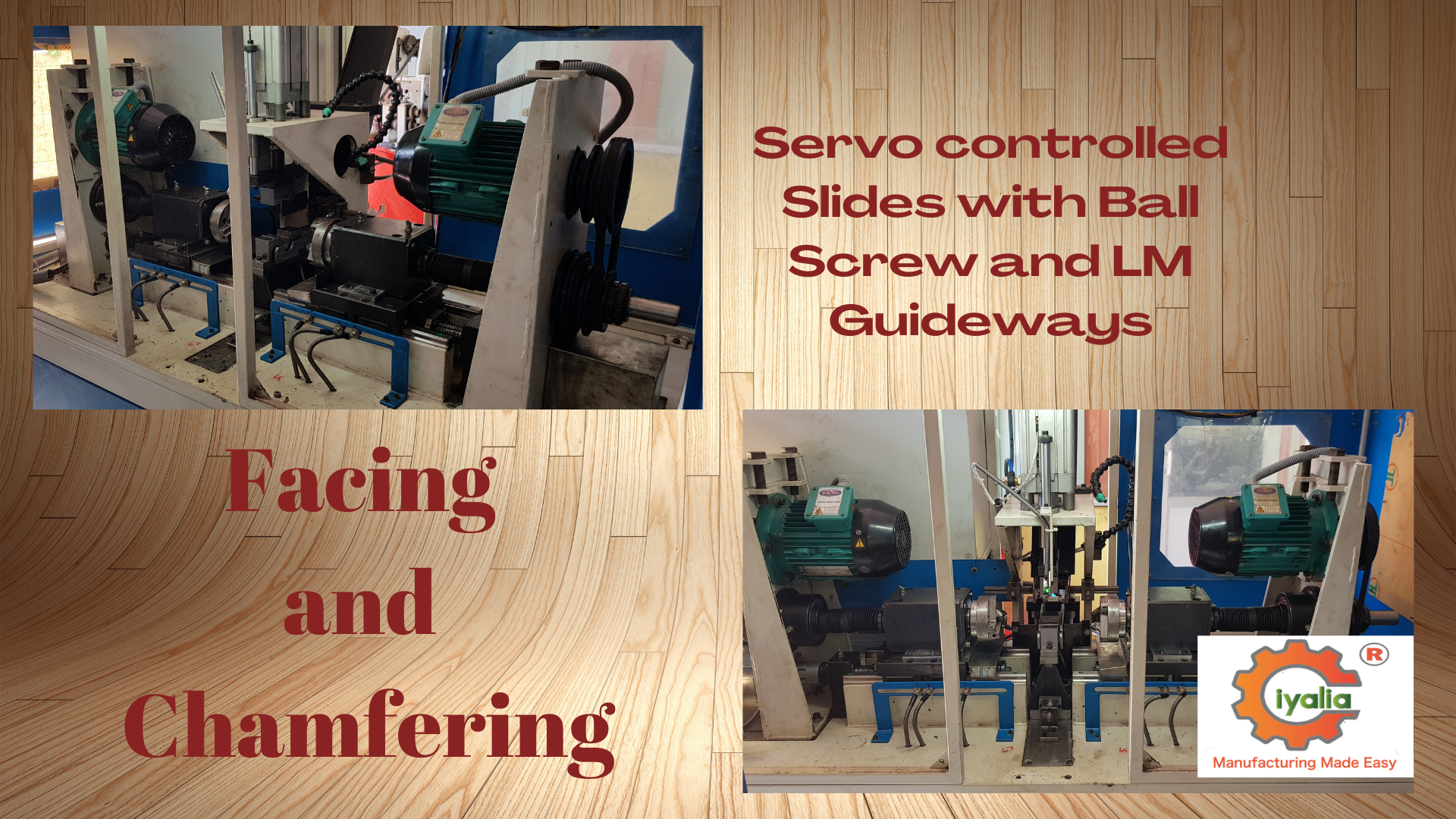

With the process of automatic Servo controls the machine is moved accurately to the required length with servo controls which is equipped with Ball screws and the Slide Moving in LM Guideways, ensures the length is controlled with in the given tolerance. Comparing the Hydraulic movement of the slides, where the Hydraulic may differ according to the outside temperature and also the viscosity of the Hydraulic oil. All it depends upon the location, if its hot, the feed may vary. So Servo Controls are the best method of slides moving method with exact movement.
Material placement in the fixture like V blocks, ensures the position of the tube and stopper ensures the length of the tube positioning. The Tubes may be different material Carbon Steel, Stainless Steel, Copper, Aluminium or any other material, we need to change the feed and the RPM of the Facing and Chamfering head, which will give the best results of the machine output.
Tube clamps are specially designed with a proper chaeck to see the Tube should not unshape due to clamping pressure. Normally clamping is done with Hydraulic pressure. Clamps are designed to be perfectly fixed in the centre line between workpiece and the part
Double | Duplex Head Facing and chamfering gives the accurate outputs and high quality finish and the accurate length and the Chamfering Depth controlled. As this is controlled with the head movement with servo, we can do fast movement with high speed rapid approach and then the cutting feed as per the requirement. After the operation the cutter will automatically return with Rapid speed. This will give the cycle time reduction and the great output in a go.
